| Brand Name: | Joful |
| Model Number: | S-600/700/800/1000 / T-400/600/800/1000/1200/1500/2000 .. |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Supply Ability: | 35 sets per month |

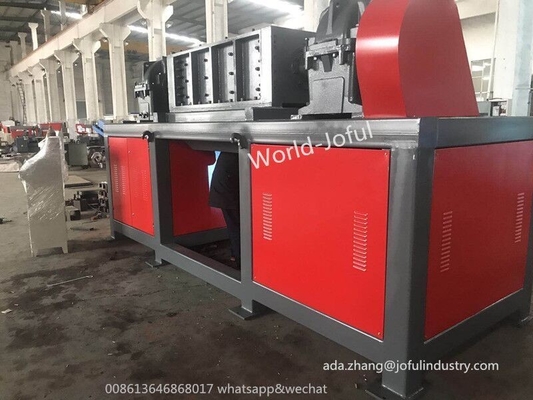

Industrial Waste Bucket Shredder Machine , Used Bucket Shredder Machine 15-150 KW
Description of waste plastic bucket shredder
a. The blade is made of high strength alloy steel, featured with strong abrasion resistance and high strength etc.
b. Differential operation between axes has the functions of tearing, extrusion and occlusion, etc.
c. It is specially designed for shredding plastic buckets with the advantages of uniform discharging, high capacity ,low speed,high torque and low noise.
d. The electrical part adopts Siemens electrical elements are as optional choices,programming control with automatic detection and overload protection function.

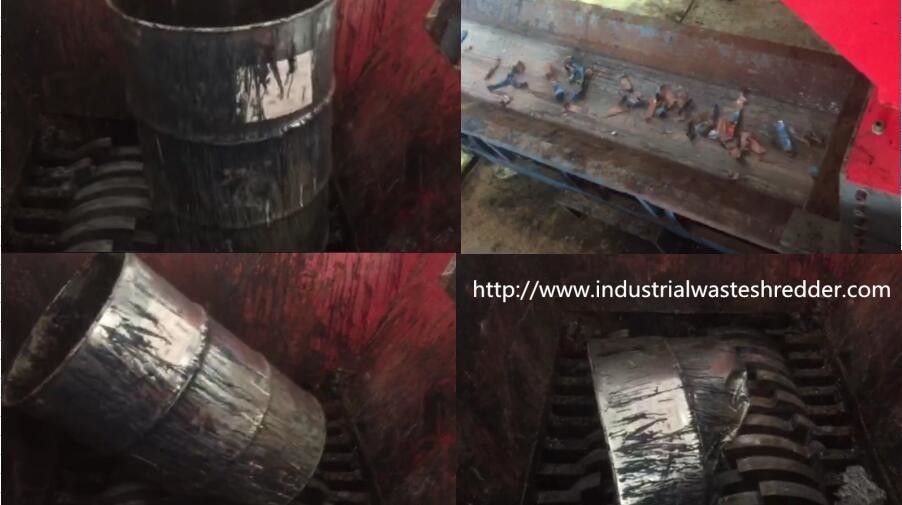

e. It’s especially suitable for shredding various bucket and drum-shaped containers like plastic bucket, dustbin, metal drum, oil drum and intermediate bulk container (IBC),etc.
Main Features
• Rugged rotors & knifes
• Individually fitted, replaceable cutter discs
• Automated reverse and emergency stop functions
• Bulkhead seals to protect the shaft bearing
• Mechanical and hydraulic drive systems are optional
Quick details
1. Lead time - 25-48 working days
2. Payment Term - 30% advance payment once upon signing the contract,70% balance payment before delivery.
3. Installation - Whole set machine delivery out,no need abroad installation. If necessary,we can support abroad installation also or offer assembly video
4.Warranty - 15 months If there's non-human damage but the machine has quality problem,we will offer the spare part for free,and if complicated problem we can send engineer to there to fix ,all costs are undertake by factory side
| Model | JFMT-400 | JFMT-600 | JFMT-800 | JFMT-1000 | JFMT-1200 | JFMT-1500 |
| Motor Power | 3+3KW | 7.5+7.5 KW | 15+15 KW | 18.5+18.5 KW | 30+30KW | 55+55 KW |
| Rotor Blade Qty | 20 pcs | 20 pcs | 20 pcs | 20 pcs | 24 pcs | 30 pcs |
| Rotor Blade Thickness | 20mm | 30mm | 40mm | 50mm | 50mm | 50mm |
| Blade Material | Sicr Cris H13 Ld ... | Sicr Cris H13 Ld ... | Sicr Cris H13 Ld ... | Sicr Cris H13 Ld ... | Sicr Cris H13 Ld ... | Sicr Cris H13 Ld ... |
| Speed | 15-30rpm | 15-30rpm | 15-24rpm | 15-24rpm | 15-24rpm | 15-24rpm |
| Rotor Dia | 200mm | 285mm | 285mm | 320mm | 380mm | 480mm |
| Chamber Size | 400*250mm | 600*430mm | 800*430mm | 1000*500mm | 1000*580mm | 1000*740mm |
| Machine Size / mm | 1200*1300*1400 | 2800*1300*1850 | 3200*1300*1950 | 3200*1300*2000 | 4000*1400*2200 | 4500*1500*2400 |
| Machine Weight | 1100 kgs | 2300 kgs | 3300 kgs | 5000 kgs | 6800 kgs | 10000 kg |
(Note: Above are standard models for general reference.We offer customize service towards different shreddind demands)
FAQ
Q. Can we visit your factory and see shredder machines working?
A. Yes,we can invite you to visit us and assist your visa application
Q. How much is the machine ?
A. Cost dependds on
1. Which Material you need to Shred ?
2. What's your output demand per hour ?
3. What's your output l size request ?
