| Brand Name: | Joful |
| Model Number: | 800F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 30-35 SET /month |
Application of the fiberglass cut fabrics cutting machine,rock wool crusher,ceramic fiber cutting machine

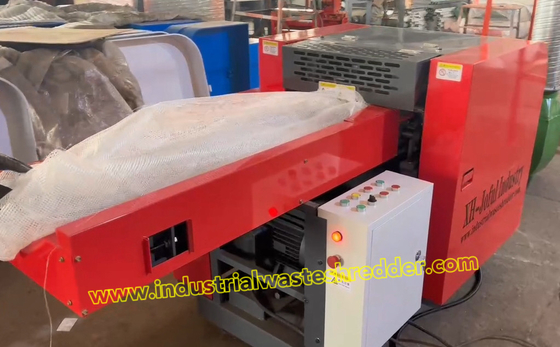

The fiberglass net crusher machine is a specialized piece of equipment designed to crush and grind fiberglass nets into small pieces or powder, facilitating their recycling or further processing. Besides the fiberglass net fabric, it can also be used to handle textile scraps ,clothes,rags,plastic films,sheep wool, galss wool ,rock wool,ceramic fiber packing bags ect

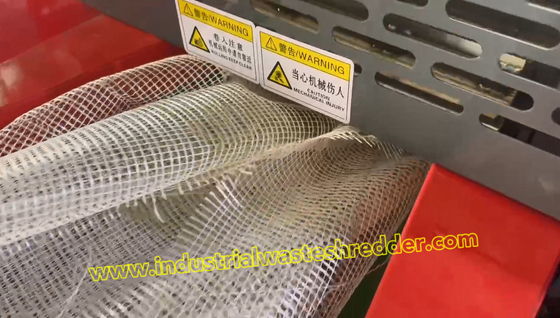

Fiberglass net material display
Different models with different capacity and various discharge sizes can be choosing
| Main Technical data | 800F | 1200F | 1600F | 2400F |
| Blade length | 400mm | 600mm | 800mm | 1200mm |
| Rotary blade qty | 6 | 6 | 6 | 6 |
| Cutting motor | 7.5KW | 18.5KW | 22KW | 22KW+22KW |
| Input & output conveyor size | 330*1400 | 520*3000 | 720*3000 | 1100*3000 |
| Sieve mesh adjustable range | 3mm-50mm | 3mm-120mm | 3mm-140mm | 3mm-140mm |
| Production output fabric / 120mm sieve mesh |
300-500kg/ hour base on 50mm mesh |
750-1100kg/hr | 900-1500kg /hr | 1200-1800kg/hr |
| Production output Plastic films / 120mm sieve mesh |
200-300kg / hour base on 50mm mesh |
550-750kg/hr | 700-1000kg/hr | 1000-1300kg/hr |
| Main Technical data | 800C | 1200B | 1600B | 2400B |
| Blade length | 400mm | 600mm | 800mm | 1200mm |
| Rotary blade qty | 4 | 4 | 4 | 4 |
| Cutting motor | 7.5KW | 18.5KW | 22KW | 22KW+22KW |
| Input & output conveyor size | 330*1400 | 520*3000 | 720*3000 | 1100*3000 |
| Sieve mesh | No mesh structure | No mesh structure | No mesh structure | No mesh structure |
| Production output | * Output is much more higher ( than the machine with sieve mesh ) * Discharge are strips ( instead of the flakes from the machine with sieve mesh ) |
|||
Contact us for more information !
