| Brand Name: | XH-JF |
| Model Number: | JF-500/800/1200/1600/2400/3200 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Monthly around 50 sets |
Features & Advantages
| Widely application, it can crush almost all kinds soft type materials |
| Better working performance, designed especially for soft type materials, larger capacity ability and power saving |
| The machine can be customized upon your different materials and cutting request |
| Quality guarantee, we have more than 10 years well skilled workers and sound QC system |
| Easy install, complete machine delivery, just need install the belt and connect the power cord |
| Easy maintenance, the machine is equipped with automatic sharpening device |
| Long lifespan, the cutting blades can be replaceable, ensure machine long lifespan |
| Quick delivery, for standard models, we have in stock supply |
| More than 15 years oversea market experience, our clients comes from all over the world |

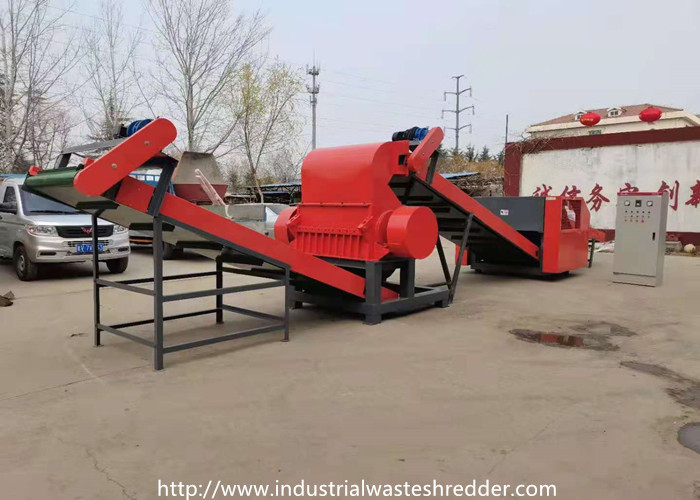

Description About The Sheep Wool Animal Fur Cutting Machine
Main Datas
| Factory Scale | 50-60 person |
| RD Team | 5-10 people |
| QC Team | 5 people |
| cutting motor | 8P motor, 5.5/7.5/15/18.5/22/44/66KW |
| transport motor | 4P Inverter motor, adjustable speed |
| blades lifespan | generally 12-24 months |
| blades design | rotary twisted knife |
| working voltage | 220/380/415/440V, customizable |
| power distribution cabinet | independent distribution cabinet |
| Input/output belt width | 330/520/720/1200mm |
| input/output belt length | 1400/3000/4000mm, can be customizable |
| moving knife | 4/6/8 pieces knife |
| fix knife | 2 pieces knife |
| blades materials | alloy tool steel |
| machine materials | carbon steel |
| cutting size | adjustable, 2mm to tens centimeters |
| output | hundreds to 8,000KG per hour |
Design & Working Principles
|
Our cutting machine working principle is to cut the materials with its sharp blades, like a scissors, adopt rotating twisted the knives, native to the abolition of the traditional reciprocating straight knife board,the application of international leading oblique knob scroll meet the shear design of point moving knife and fixed knife,continuous high-speed shear
|
|
The discharge port is designed with removable sieve mesh, the sieve mesh size can be customized as your request, mini to 2mm up to tens centimeters, both meet your different and uniform cutting output size request
|
Blades Samples As Below
Maintenance Tips
| Place the machine on a open and flat ground, avoid tilting |
| Pleas running the empty machine for more than 30 minutes, to check if every parts running well |
| Sharpening the knifes according to our suggestion |
| Avoid metal and other solid materials, that may damage the cutting blades |
| Do not try to repair the machine yourself, if any problems comes up, please contact us firstly, we will solve your problem in the first time |
Blade Sharpening Device As Below
Animal Fur Sheepwool Cutting Samples As Below
